Dokumentacija
- Šifra proizvoda: MBM2XL63E0

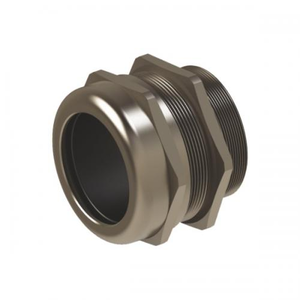

- Naziv: MBM2XL63E0 Kablovski metalni uvodnik, XL, M63, 45-55mm, MS-nikl. IP68
- Proizvođač: Morek EU
- Na lageru: 7
Opis: Navoj; metrički (EN60423) Uvodnici i navrtke se uvek prodaju zajedno, navrtke se ne mogu kupiti posebno
- Jedinica mere: kom
- Minimalna količina za porudžbinu: 1
Product code:MBM2XL63E0
EAN:4744397027283
ETIM Class:EC000441
Product series:Cable glands
CN8 code:74198090
Unit:pcs
Package size:5
Net weight:0.49 kg
Net length:0.075 m
Net width:0.075 m
Net depth:0.063 m
Thread type:Metric
Nominal thread size metric/PG:63
Nominal thread size inch/gas pipe thread:Not applicable
Pitch thread:1.5 mm
Thread length:15 mm
Wrench width:75 mm
Hexagon angular dimension:Unknown
Suitable for cable diameter:45 - 55 mm
Material:Metal
Material quality:Brass
Surface protection:Nickel-plated
Halogen free:Yes
Glass-fibre reinforced:No
Degree of protection (IP):IP68
Shock resistant:No
Colour:Colourless
RAL-number:Not applicable
Bend radius protection/trumpet flare:No
With locknut:No
Snapping in opening:No
Model:Straight
Multi seal area:No
Flat cable coupling:No
With strain relief:Yes
Type of sealing:-
Separable screw gland:Yes
